Motorola

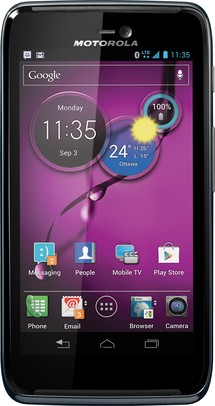

Motorola Atrix HD LTE MB886 (Motorola Dinara)
Model iz 2012. godine, ekran od 4.49 inča, baterija od 1780 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2012-08-14
- Brend
- Motorola
- Model
- Atrix HD LTE MB886
- Dizajner hardvera
- Motorola Mobile Devices
- Proizvođač
- Motorola Mobile Devices
- Kodna oznaka
- Motorola Dinara
- Kategorija
- Smartphone
Kućište
- Masa
- 140 g
- Širina
- 69.9 mm
- Visina
- 133.5 mm
- Debljina
- 8.4 mm
- Zapremina kućišta
- 78.4 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 4.49 inča
- Rezolucija
- 720x1280
- Gustina
- 327 ppi
- Rezolucija
- 720x1280
- Širina ekrana
- 55.89 mm
- Visina ekrana
- 99.36 mm
- Horizontal Full Bezel Width
- 14.01 mm
- Površina ekrana
- 5553.2 square millimeter
- Display Area Utilization
- 59.5%
- Pixel Size
- 0.07762 mm/pixel
- Gustina piksela
- 327 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Display Subtype
- ColorBoost
- Dubina boja
- 24 bit/pixel
- Number of Display Scales
- 16.8M
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- Da
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Corning Gorilla Glass
- Graphical Controller
- Qualcomm Adreno 225
- Dedicated Graphics Memory
- 0.5 MiB
- A/V Out
- HDMI 1.4
- A/V Out Max. Resolution
- 1920x1080 (1080p) FHD
Platforma
- Sistem
- Android
- Čip
- qualcomm-snapdragon-s4-msm8960
- Takt procesora
- 1512 MHz
- Procesor
- Qualcomm Snapdragon S4 MSM8960, 2012, 32 bit, dual-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 1024 Kbyte L2, 28 nm, Qualcomm Adreno 225 GPU
- Tip RAM memorije
- mobile (LP) DDR2 SDRAM
- RAM
- 1024 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 7629 MiB non-volatile
Memorija
- RAM
- 1 GB
- Interna
- 8 GB
Baterija
- Kapacitet
- 1780 mAh
- Battery
- Lithium-ion polymer (LiPo)
- Nominal Cell Capacity (1st cell)
- 1780 mAh cell
- Kapacitet baterije
- 1780 mAh battery
- Market Countries
- Canada
- Market Regions
- Nerth America (NA)
- Mobile Operator
- Bell Mobility
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2012-07-12 11:16
Softver
- Platforma
- Google Android
- Operativni sistem
- Google Android 4.0.4 (Ice Cream Sandwich)
Zvuk
- Audio Channel(s)
- stereo
- Microphone(s)
- 3
- Loudspeaker(s):
- mono
- Audio Output:
- 3.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 1700/2100MHz (Band IV, AWS) , UMTS 850MHz (Band V, CLR) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 700 MHz (Band 17) bands
- Supported Cellular Data Links
- GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , LTE (Cat. unspecified) , LTE 75 Mbps / 25 Mbps (Cat. 3) data links
- SIM
- Da
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 64-chord melody
- Hearing Aid Compatibility (HAC)
- M3 , T3
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC
- Cellular Controller
- Qualcomm MSM8960
- SAR (head)
- 0.630 W/kg
- SAR (body)
- 0.620 W/kg
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Capacitive multi-touch sensing screen
- Touchscreen Simultaneous Touch Points
- Da
- Proširenja
- TransFlash , microSD , microSDHC
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- USB Series Micro-B (Micro-USB)
- Bluetooth
- Bluetooth 4.0
- Bluetooth profiles
- A2DP , AVRCP
- Wi‑Fi
- IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
- Wireless Services
- DLNA , Wi-Fi Tethering
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Assisted GPS , Geotagging , QuickGPS
- Supported GLONASS protocol(s)
- L1OF
- Navigation Controller
- Qualcomm MSM8960 gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 3264x2448 pixel
- Number of effective pixels
- 8.0 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- JPG
- Video snimanje
- 1920x1080 pixel
- Recordable Video Formats
- 3GP , 3G2 , MPEG4
- Flash
- single LED
- Camera Extra Functions
- Electronic Image Stabilizer (EIS) , Macro mode , Face detection
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Placement
- Front
- Secondary Camera Sensor
- CMOS
- Prednja kamera
- 1280x960 pixel
- Secondary Camera Number of pixels
- 1.2 MP sec. cam
- Secondary Recordable Image Formats
- JPG
- Secondary Video Recording
- 1280x720 pixel
- Secondary Recordable Video Formats
- 3G2
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in compass
- Da
- Built-in accelerometer
- Da
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
