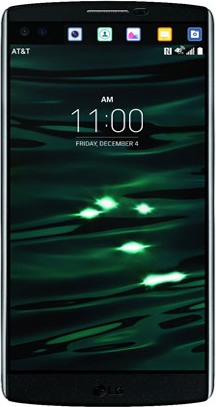

LG H960AR V10 TD-LTE (LG HPF)

Osnovno

Datum izlaska

2015-12-01

Brend

LG

Model

H960AR V10 TD-LTE

Najavljen

2015 Sep

Dizajner hardvera

LG Electronics

Proizvođač

LG Electronics

Kodna oznaka

LG HPF

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

192 g

Širina

79.3 mm

Visina

159.6 mm

Debljina

8.6 mm

Zapremina kućišta

108.8 ccm

Ekran

Tip

Color IPS TFT LCD display

Dijagonala

5.72 inča

Rezolucija

1440x2560

Gustina

513 ppi

Rezolucija

1440x2560

Širina ekrana

71.23 mm

Visina ekrana

126.64 mm

Horizontal Full Bezel Width

8.07 mm

Površina ekrana

9021.2 square millimeter

Display Area Utilization

71.3%

Pixel Size

0.04947 mm/pixel

Gustina piksela

513 PPI

Tip ekrana

Color IPS TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass 4

Secondary Display Diagonal:

53 mm

Secondary Display Resolution

1040x160

Secondary Number of pixels:

166400 pixels

Secondary Horizontal Display Size:

52.38 mm

Secondary Horizontal Display Size :

2.06 inch

Secondary Vertical Display Size:

8.06 mm

Secondary Display Area:

422.2 square millimeter

Secondary Display Pixel Size:

0.05037 mm/pixel

Secondary Display Pixel Density (dot pitch):

504 PPI

Secondary Display Type:

Color IPS TFT LCD 2nd display

Secondary Display Color Depth:

24 bit/pixel

Secondary Number of Display Colors/Scales:

16.8M

Secondary Display Illumination:

Da

Secondary Display Light Reflection Mode:

Da

Secondary Display Subpixel Scheme:

RGB Matrix (3 subpixels)

Graphical Controller

Qualcomm Adreno 418

Dedicated Graphics Memory

0.5 MiB

A/V Out

DisplayPort (Unspecified)

A/V Out Max. Resolution

3840x2160 (2160p) 4K UHD

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-808-msm8992

Takt procesora

1820 MHz

Procesor

Qualcomm Snapdragon 808 MSM8992, 2015, 64 bit, hexa-core, 20 nm, Qualcomm Adreno 418 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

4096 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

61035 MiB non-volatile

Memorija

RAM

4 GB

Interna

64 GB

Baterija

Kapacitet

2900 mAh

Battery

Lithium-ion (SiO+)

Nominal Cell Capacity (1st cell)

2900 mAh cell

Kapacitet baterije

2900 mAh battery

Vreme pripravnosti

120 hours

Standby Current

24 mA

Talk Time:

12.0 hours

Current During Talk

242 mA

Market Countries

Argentina

Market Regions

South America (SA)

Data Integrity

Preliminary

Added

2016-04-10 16:57

Softver

Platforma

Google Android

Operativni sistem

Google Android 5.1.1 (Lollipop)

Zvuk

Audio Channel(s)

stereo

Audio Controller

ESS ES9018K2M

Microphone(s)

3

D/A Converter Nominal Resolution

32 bit quantization

D/A Holding Frequency

192000 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1900 MHz (Band 2, PCS) , LTE 1800 MHz (Band 3) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 700 MHz (Band 12) , LTE 700 MHz (Band 17) , LTE 800 MHz (Band 20) , LTE 700 MHz (Band 28) , TD-LTE 2600 MHz (Band 38) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Multi-slot Class 33 , EDGE (Class unspecified) , EDGE Multi-slot Class 33 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 300 Mbps / 50 Mbps (Cat. 6) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm MSM8992

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery

USB Connector

USB Series Micro-AB

Bluetooth

Bluetooth 4.1

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Miracast , Wi-Fi Tethering

NFC

Da

IR

Da

FM Radio Receiver

Nepoznato

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

Qualcomm MSM8992 IZat

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.60

Camera Resolution

5312x2988 pixel

Number of effective pixels

15.9 MP camera

Aperture (W)

f/1.80

Zoom

1.0 x optical zoom

Focus

Laser Autofocus

Min. Equiv. Focal Length

28 mm

Recordable Image Formats

JPG

Video snimanje

3840x2160 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

dual LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Optical Image Stabilization (OIS) , HDR photo , HDR video , Red-eye effect reduction , Touch focus , Macro mode , Panorama Photo , Face detection , Smile detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Prednja kamera

2592x1944 pixel

Secondary Camera Number of pixels

5.0 MP sec. cam

Secondary Aperture (W)

f/2.20

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP , 3G2

Sec. Aux. Cam. Image Sensor

BSI CMOS

Sec. Aux. Camera Number of Pixels

5.0 MP sec. aux. camera

Sec. Aux. Cam. Aperture (W)

f/2.00

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Built-in gyroscope

Da

Additional sensors

Barometer , Fingerprint sensor , Hall sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da

Military Standard Compliance (MIL-STD)

MIL-STD-810G
