HTC

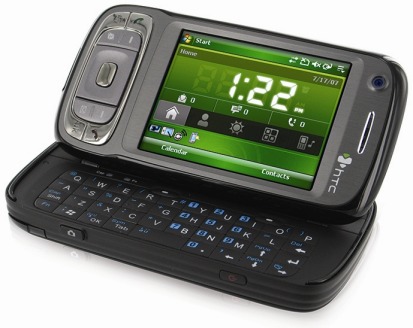

HTC TyTN II P4550 (HTC Kaiser 120)
Model iz 2007. godine, ekran od 2.76 inča, baterija od 1350 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2007-09-04
- Brend
- HTC
- Model
- TyTN II P4550
- Dizajner hardvera
- HTC
- Proizvođač
- HTC
- Kodna oznaka
- HTC Kaiser 120
- OEM ID
- KAIS120
- Kategorija
- Smartphone
Kućište
- Masa
- 190 g
- Širina
- 59 mm
- Visina
- 112 mm
- Debljina
- 19 mm
- Zapremina kućišta
- 125.6 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.76 inča
- Rezolucija
- 240x320
- Gustina
- 145 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 42 mm
- Visina ekrana
- 56 mm
- Horizontal Full Bezel Width
- 17 mm
- Površina ekrana
- 2352 square millimeter
- Display Area Utilization
- 35.6%
- Pixel Size
- 0.175 mm/pixel
- Gustina piksela
- 145 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transmissive
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- qualcomm-msm7200
- Takt procesora
- 400 MHz
- Procesor
- Qualcomm MSM7200, 2006, 32 bit, single-core, 90 nm
- Tip RAM memorije
- SDRAM
- RAM
- 128 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 256 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1350 mAh
- Battery
- Lithium-ion polymer (LiPo)
- Nominal Cell Capacity (1st cell)
- 1350 mAh cell
- Kapacitet baterije
- 1350 mAh battery
- Estimated Battery Life
- 11.0 hours
- Estimated Average Current
- 123 mA
- Market Countries
- Australia , Germany , Hungary , Ireland , Italy , Poland , Russia , UK
- Market Regions
- Australia , Eastern Europe , Europe , Western Europe
- Mobile Operator
- Hutchison Three UK Orange United Kingdom SingTel Optus Pty Limited
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2007-02-28 21:31
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 6 Professional (Crossbow)
- Operating System Kernel Version
- 5.2.1620
- Softverske mogućnosti
- Navigation software
Zvuk
- Audio Channel(s)
- stereo
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- mono
- Audio Output:
- Proprietary
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone
- Cellular Controller
- Qualcomm MSM7200 (QDSP4000, QDSP5000)
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Tastatura
- Slide-out/tilt QWERTY
- Keyboard Backlight
- Aut. keyboard backlight (upon press of key/low light)
- Number of keys
- 41
- Directional Pad
- Four-way (with action button)-way
- Scroll Wheel
- Pressable non-rotary scroll wheel
- Proširenja
- Secure Digital Input/Output interface , TransFlash , microSD , microSDHC
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- USB Series Mini-B (mini-USB)
- Bluetooth
- Bluetooth 2.0
- Bluetooth profiles
- A2DP
- Wi‑Fi
- IEEE 802.11b , IEEE 802.11g
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Assisted GPS , QuickGPS
- Navigation Controller
- Qualcomm MSM7200 gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 2048x1536 pixel
- Number of effective pixels
- 3.1 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- BMP , JPG
- Video snimanje
- 352x288 pixel
- Recordable Video Formats
- 3GP , MPEG4 , MJPG
- Flash
- Ne
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Placement
- Front
- Secondary Camera Sensor
- CMOS
- Prednja kamera
- 640x480 pixel
- Secondary Camera Number of pixels
- 0.3 MP sec. cam
- Secondary Recordable Image Formats
- BMP , JPG
- Secondary Video Recording
- 352x288 pixel
- Secondary Recordable Video Formats
- 3GP , MPEG4 , MJPG
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
