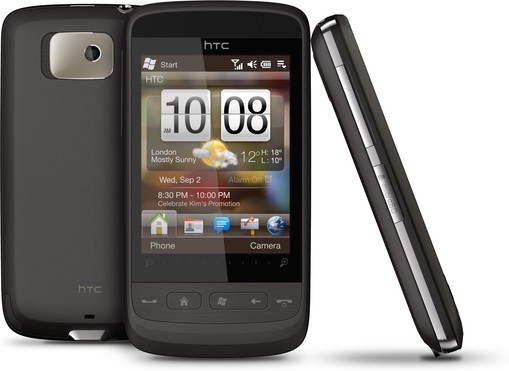

HTC Touch2 T3333 (HTC Mega 100)

Osnovno

Datum izlaska

2009-10-06

Brend

HTC

Model

Touch2 T3333

Dizajner hardvera

HTC

Proizvođač

HTC

Kodna oznaka

HTC Mega 100

Kategorija

Smartphone

Kućište

Masa

110 g

Širina

55 mm

Visina

104 mm

Debljina

12.9 mm

Zapremina kućišta

73.8 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.76 inča

Rezolucija

240x320

Gustina

145 ppi

Rezolucija

240x320

Širina ekrana

42 mm

Visina ekrana

56 mm

Horizontal Full Bezel Width

13 mm

Površina ekrana

2352 square millimeter

Display Area Utilization

41.1%

Pixel Size

0.175 mm/pixel

Gustina piksela

145 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

qualcomm-msm7225

Takt procesora

528 MHz

Procesor

Qualcomm MSM7225, 2007, 32 bit, single-core, 65 nm, Qualcomm Adreno 200 enhanced GPU

Tip RAM memorije

mobile (LP) DDR SDRAM

RAM

256 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1100 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1100 mAh cell

Kapacitet baterije

1100 mAh battery

Data Integrity

Preliminary

Added

2009-08-09 17:02

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.5 Professional (Titanium)

Operating System Kernel Version

5.2.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 900MHz (Band VIII) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSDPA 7.2 Mbps (Cat. 8) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM7225

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Navigation Controller

Qualcomm MSM7225 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP , MPEG4 , MJPG

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
