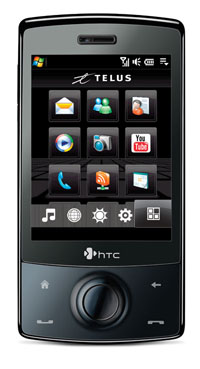

HTC Touch Diamond CDMA P3051 (HTC Diamond)

Osnovno

Datum izlaska

2008-08-14

Brend

HTC

Model

Touch Diamond CDMA P3051

Dizajner hardvera

HTC

Proizvođač

HTC

Kodna oznaka

HTC Diamond

Kategorija

Smartphone

Kućište

Masa

113 g

Širina

50.8 mm

Visina

101 mm

Debljina

13.9 mm

Zapremina kućišta

71.3 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.76 inča

Rezolucija

480x640

Gustina

290 ppi

Rezolucija

480x640

Širina ekrana

42 mm

Visina ekrana

56 mm

Horizontal Full Bezel Width

8.8 mm

Površina ekrana

2352 square millimeter

Display Area Utilization

45.8%

Pixel Size

0.0875 mm/pixel

Gustina piksela

290 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

qualcomm-msm7501a

Takt procesora

528 MHz

Procesor

Qualcomm MSM7501A, 2008, 32 bit, single-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 65 nm

Tip RAM memorije

mobile (LP) DDR SDRAM

RAM

256 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Secondary Non-volatile Memory Type

Flash EEPROM

Secondary Non-volatile Memory Capacity

4 GB sec. ROM

Memorija

RAM

1 GB

Baterija

Kapacitet

1340 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

1340 mAh cell

Kapacitet baterije

1340 mAh battery

Market Countries

Canada

Market Regions

Nerth America (NA)

Mobile Operator

Telus Mobility

Related Page:

URL

Data Integrity

Final

Added

2008-08-06 23:40

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Professional

Operating System Kernel Version

5.2.2

Softverske mogućnosti

Business card recognition

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands

Supported Cellular Data Links

cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A data links

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM7501A (QDSP4000, QDSP5000)

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Directional Pad

Four-way (with action button)-way

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , QuickGPS

Navigation Controller

Qualcomm MSM7501A gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

352x288 pixel

Recordable Video Formats

3GP , MPEG4

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
