HTC

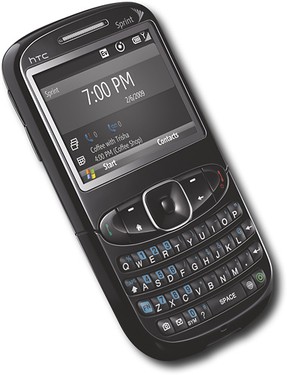

HTC Snap CDMA (HTC Cedar)
Model iz 2009. godine, ekran od 2.4 inča, baterija od 1500 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2009-09-02
- Brend
- HTC
- Model
- Snap CDMA
- Dizajner hardvera
- HTC
- Proizvođač
- HTC
- Kodna oznaka
- HTC Cedar
- Kategorija
- Smartphone
Kućište
- Masa
- 105 g
- Širina
- 60 mm
- Visina
- 110 mm
- Debljina
- 13 mm
- Zapremina kućišta
- 85.8 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.4 inča
- Rezolucija
- 320x240
- Gustina
- 167 ppi
- Rezolucija
- 320x240
- Širina ekrana
- 48.8 mm
- Visina ekrana
- 36.6 mm
- Horizontal Full Bezel Width
- 11.2 mm
- Površina ekrana
- 1786.1 square millimeter
- Display Area Utilization
- 27.1%
- Pixel Size
- 0.1525 mm/pixel
- Gustina piksela
- 167 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- qualcomm-msm7625
- Takt procesora
- 528 MHz
- Procesor
- Qualcomm MSM7625, 2009, 32 bit, single-core, 65 nm, Qualcomm Adreno 200 enhanced GPU
- Tip RAM memorije
- SDRAM
- RAM
- 128 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 256 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1500 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 1500 mAh cell
- Kapacitet baterije
- 1500 mAh battery
- Data Integrity
- Preliminary
- Added
- 2009-09-06 12:38
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 6.1 Standard
- Operating System Kernel Version
- 5.2.2
Zvuk
- Audio Channel(s)
- stereo
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- mono
- Audio Output:
- Proprietary
- Mrežni opsezi
- CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands
- Supported Cellular Data Links
- cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A data links
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Vibrating Alert , Speakerphone
- Cellular Controller
- Qualcomm MSM7625
- SAR (head)
- 1.030 W/kg
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Tastatura
- Built-in QWERTY
- Keyboard Backlight
- Aut. keyboard backlight (upon press of key)
- Number of keys
- 43
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- Secure Digital Input/Output interface , TransFlash , microSD , microSDHC
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- USB Series Mini-B (mini-USB)
- Bluetooth
- Bluetooth 2.0 + Enhanced Data Rate
- Bluetooth profiles
- A2DP , AVRCP
- Wi‑Fi
- IEEE 802.11b , IEEE 802.11g
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Assisted GPS , Geotagging , QuickGPS
- Navigation Controller
- Qualcomm MSM7625 gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 1600x1200 pixel
- Number of effective pixels
- 1.9 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- BMP , JPG
- Video snimanje
- 320x240 pixel
- Recordable Video Formats
- 3GP , MPEG4 , MJPG
- Flash
- Ne
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
