HTC

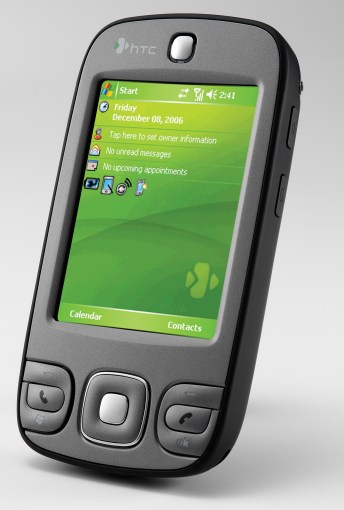

HTC P3400 (HTC Gene 100)
Model iz 2007. godine, ekran od 2.8 inča, baterija od 1250 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2007-03-31
- Brend
- HTC
- Model
- P3400
- Dizajner hardvera
- HTC
- Proizvođač
- HTC
- Kodna oznaka
- HTC Gene 100
- OEM ID
- GENE100
- Dodatna oprema
- Passive stylus
- Kategorija
- Smartphone
Kućište
- Masa
- 126 g
- Širina
- 58 mm
- Visina
- 109 mm
- Debljina
- 17.65 mm
- Zapremina kućišta
- 111.6 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.8 inča
- Rezolucija
- 240x320
- Gustina
- 143 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 42.6 mm
- Visina ekrana
- 56.8 mm
- Horizontal Full Bezel Width
- 15.4 mm
- Površina ekrana
- 2419.7 square millimeter
- Display Area Utilization
- 38.3%
- Pixel Size
- 0.1775 mm/pixel
- Gustina piksela
- 143 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- texas-instruments-omap-850
- Takt procesora
- 201 MHz
- Procesor
- Texas Instruments OMAP 850, 2005, 32 bit, single-core, 16 Kbyte I-Cache, 8 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 64 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 128 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1250 mAh
- Battery
- Lithium-ion polymer (LiPo)
- Nominal Cell Capacity (1st cell)
- 1250 mAh cell
- Kapacitet baterije
- 1250 mAh battery
- Estimated Battery Life
- 12.0 hours
- Estimated Average Current
- 104 mA
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2007-02-14 11:27
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto)
- Operating System Kernel Version
- 5.1.422 Build 15633.3.2.0
Zvuk
- Audio Channel(s)
- stereo
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- mono
- Audio Output:
- Proprietary
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna and external antenna jack
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone
- Cellular Controller
- TI TMS320C54x
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- MMC , SD , Secure Digital Input/Output interface
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- USB Series Mini-B (mini-USB)
- Bluetooth
- Bluetooth 2.0
- Wi‑Fi
- Ne
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- Ne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 1600x1200 pixel
- Number of effective pixels
- 1.9 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Ne
- Recordable Image Formats
- BMP , JPG
- Video snimanje
- 176x144 pixel
- Recordable Video Formats
- 3GP , MPEG4 , MJPG
- Flash
- Ne
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
