HTC

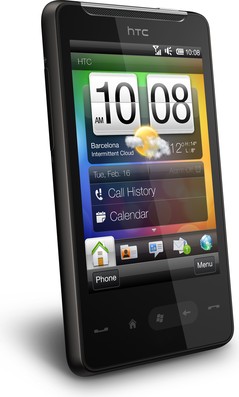

HTC HD Mini US (HTC Photon)
Model iz 2010. godine, ekran od 3.19 inča, baterija od 1500 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2010-01-01
- Brend
- HTC
- Model
- HD Mini US
- Dizajner hardvera
- HTC
- Proizvođač
- HTC
- Kodna oznaka
- HTC Photon
- OEM ID
- PB92110
- Kategorija
- Smartphone
Kućište
- Masa
- 110 g
- Širina
- 57.7 mm
- Visina
- 103.8 mm
- Debljina
- 11.7 mm
- Zapremina kućišta
- 70.1 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 3.19 inča
- Rezolucija
- 320x480
- Gustina
- 181 ppi
- Rezolucija
- 320x480
- Širina ekrana
- 44.93 mm
- Visina ekrana
- 67.4 mm
- Horizontal Full Bezel Width
- 12.77 mm
- Površina ekrana
- 3028.2 square millimeter
- Display Area Utilization
- 50.6%
- Pixel Size
- 0.14041 mm/pixel
- Gustina piksela
- 181 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- Qualcomm Adreno 200
- Dedicated Graphics Memory
- 0.25 MiB
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- qualcomm-msm7227
- Takt procesora
- 600 MHz
- Procesor
- Qualcomm MSM7227, 2009, 32 bit, single-core, 65 nm, Qualcomm Adreno 200 GPU
- Tip RAM memorije
- Da
- RAM
- 384 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 512 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1500 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 1200 mAh cell
- Market Countries
- USA
- Related Page:
- URL
- Data Integrity
- Preliminary
- Added
- 2010-04-24 17:38
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 6.5.3 Professional (Maldives)
- Operating System Kernel Version
- 5.2.23103 Build
- Softverske mogućnosti
- Business card recognition
Zvuk
- Audio Channel(s)
- stereo
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- mono
- Audio Output:
- 3.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 2.0 Mbps (Cat. 5) , HSDPA (Cat. unspecified) , HSDPA 7.2 Mbps (Cat. 8) data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone
- Cellular Controller
- Qualcomm MSM7227
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Capacitive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Proširenja
- Secure Digital Input/Output interface , TransFlash , microSD , microSDHC
- USB
- USB 2.0
- USB Connector
- USB Series Micro-B (Micro-USB)
- Bluetooth
- Bluetooth 2.1 + Enhanced Data Rate
- Bluetooth profiles
- A2DP , AVRCP
- Wi‑Fi
- IEEE 802.11b , IEEE 802.11g
- FM Radio Receiver
- FM radio (88-108 MHz) with RDS
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Assisted GPS , Geotagging , QuickGPS
- Navigation Controller
- Qualcomm MSM7227 gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 2560x1920 pixel
- Number of effective pixels
- 4.9 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- JPG
- Video snimanje
- 640x480 pixel
- Recordable Video Formats
- 3GP , MPEG
- Flash
- Ne
- Camera Extra Functions
- Macro mode
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Da
- Additional sensors
- Light intensity sensor , Proximity sensor
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
