HTC

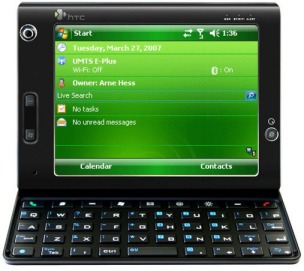

HTC Advantage X7501 (HTC Athena)
Model iz 2007. godine, ekran od 5.04 inča, baterija od 1500 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2007-08-07
- Brend
- HTC
- Model
- Advantage X7501
- Dizajner hardvera
- HTC
- Proizvođač
- HTC
- Kodna oznaka
- HTC Athena
- Kategorija
- Smartphone
Kućište
- Masa
- 359 g
- Širina
- 98 mm
- Visina
- 133.5 mm
- Debljina
- 16 mm
- Zapremina kućišta
- 209.3 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 5.04 inča
- Rezolucija
- 640x480
- Gustina
- 159 ppi
- Rezolucija
- 640x480
- Širina ekrana
- 102.4 mm
- Visina ekrana
- 76.8 mm
- Površina ekrana
- 7864.3 square millimeter
- Display Area Utilization
- 60.1%
- Pixel Size
- 0.16 mm/pixel
- Gustina piksela
- 159 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 18 bit/pixel
- Number of Display Scales
- 262144
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- ATI Imageon W2284
- A/V Out
- Da
- A/V Out Max. Resolution
- 640x480 (VGA)
Platforma
- Sistem
- Windows Mobile
- Čip
- intel-xscale-pxa270
- Takt procesora
- 624 MHz
- Procesor
- Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 128 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 256 MiB non-volatile
- Hard Disk Capacity
- 7619 MB
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1500 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 2200 mAh cell
- Estimated Battery Life
- 9.0 hours
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2007-03-27 13:26
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 6 Professional (Crossbow)
- Operating System Kernel Version
- 5.2.1238 Build 17745.0.2.3
Zvuk
- Audio Channel(s)
- stereo
- Audio Controller
- Asahi Kasei AK4641
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- stereo
- Audio Output:
- 3.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Speakerphone
- Cellular Controller
- Qualcomm MSM6275 (2x QDSP4000)
- SAR (head)
- 0.836 W/kg
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Tastatura
- Attachable QWERTY
- Keyboard Backlight
- Aut. keyboard backlight (upon press of key/low light)
- Number of keys
- 49
- Proširenja
- Secure Digital Input/Output interface , miniSD , miniSDHC
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- USB Series Mini-B (mini-USB)
- Bluetooth
- Bluetooth 2.0
- Wi‑Fi
- IEEE 802.11b , IEEE 802.11g
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Parallel GPS Channels
- 20
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- QuickGPS
- Navigation Controller
- Qualcomm MSM6275 gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 2048x1536 pixel
- Number of effective pixels
- 3.1 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- BMP , JPG
- Video snimanje
- 352x288 pixel
- Recordable Video Formats
- 3GP , MPEG4
- Flash
- single LED
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Secondary Recordable Image Formats
- BMP , JPG
- Secondary Recordable Video Formats
- 3GP , AVI , MPEG4
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Da
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
