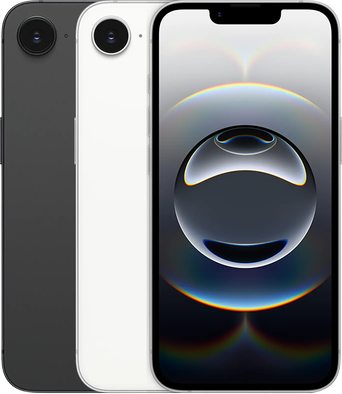

Apple iPhone 16e 5G A3408 Dual SIM TD-LTE MEA CA MX 128GB (Apple iPhone 17,5)

Osnovno

Datum izlaska

2025-02-28

Brend

Apple

Model

iPhone 16e 5G A3408 Dual SIM TD-LTE MEA CA MX 128GB

Najavljen

2025 Feb 19

Dizajner hardvera

Apple

Proizvođač

Foxconn

Kodna oznaka

Apple iPhone 17,5

OEM ID

V59AP

Dodatna oprema

Haptic touch feedback , Tactile touch feedback

Kategorija

Smartphone

Kućište

Masa

167 g

Širina

71.5 mm

Visina

146.7 mm

Debljina

7.8 mm

Zapremina kućišta

81.8 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.06 inča

Rezolucija

1170x2532

Gustina

460 ppi

Otvor na ekranu

1-notch

Rezolucija

1170x2532

Širina ekrana

64.6 mm

Visina ekrana

139.8 mm

Horizontal Full Bezel Width

6.9 mm

Površina ekrana

9030.6 square millimeter

Display Area Utilization

86.1%

Pixel Size

0.05521 mm/pixel

Gustina piksela

460 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super Retina XDR

Dubina boja

30 bit/pixel

Number of Display Scales

1073.7M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

60 Hz

Zaštita ekrana

Corning Ceramic Shield

Display Module

BOE Technology Group

Graphical Controller

Apple G17P MP4

GPU Clock:

1338 MHz

A/V Out

Ne

Platforma

Sistem

iOS

Čip

apple-a18-apl1v08-t8142

Takt procesora

4044 MHz

Procesor

Apple A18 APL1V08 T8142 (Tupai), 2024, 64 bit, hexa-core, 192 Kbyte I-Cache, 128 Kbyte D-Cache, 12288 Kbyte L2, 12288 Kbyte L3, 3 nm, Apple G17P GPU

Tip RAM memorije

LPDDR5X SDRAM

RAM

8192 MiB RAM

RAM IC

SK Hynix H58G66CK8HX139

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

122070 MiB non-volatile

Non-volatile Memory IC

Kioxia K5A3AL0872

Memorija

RAM

8 GB

Interna

128 GB

Baterija

Kapacitet

4005 mAh

Battery

Lithium-ion

Nominal Cell Voltage (1st cell)

3.88 Volts

Nominal Cell Capacity (1st cell)

4005 mAh cell

Nominal Battery Voltage

3.88 Volts

Kapacitet baterije

4005 mAh battery

Nominal Battery Energy

15.54 Wh

Power Supply Controller IC

Apple APL1034

Wireless Charging

Qi wireless charging

Max. Wireless Charging Power

7.5 W

Softver

Platforma

Apple iOS / iPadOS

Operativni sistem

Apple iOS 18.3

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition

Zvuk

Audio Channel(s)

stereo

Audio Controller

Cirrus Logic 338S00739

Microphone(s)

3

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

e-SIM (embedded) , Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Hearing Aid Compatibility (HAC)

M3 , T4

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Apple C1 APL1114

SAR (head)

1.190 W/kg

SAR (body)

1.200 W/kg

2nd highest SAR (head)

1.480 W/kg

2nd highest SAR (body)

1.490 W/kg

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

e-SIM (embedded)

Sec. Phone Controller IC:

Apple C1 APL1114

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery , USB Power Delivery 2.0

USB Connector

USB Type-C reversible

Max. Charging Power

25.0 W charging

Bluetooth

Bluetooth 5.3

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , HFP , HID , MAP , PAN , PBA

Bluetooth Controller IC

USI 339S01444

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Wi-Fi Calling (UMA) , Wi-Fi Calling (VoWiFi)

WLAN Controller IC

USI 339S01444

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS , QZSS , NavIC , Satellite Message , Satellite SOS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Apple A18

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.55

Image Sensor Pixel Size

0.70 micrometer

Camera Resolution

8000x6000 pixel

Number of effective pixels

48.0 MP camera

Aperture (W)

f/1.60

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

26 mm

Recordable Image Formats

JPG , HEIF

Video snimanje

3840x2160 pixel

Recordable Video Formats

3G2 , HEVC

Flash

single LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Format

1/3.60

Secondary Image Sensor Pixel Size

1.00 micrometer

Prednja kamera

4032x3024 pixel

Secondary Camera Number of pixels

12.2 MP sec. cam

Secondary Aperture (W)

f/1.90

Secondary Camera Focus

Phase-Detection Autofocus (PD AF)

Secondary Min. Equiv. Focal Length

23 mm

Secondary Recordable Image Formats

JPG , RAW , HEIF

Secondary Video Recording

3840x2160 pixel

Secondary Recordable Video Formats

3G2 , HEVC

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Smile detection , Face retouch

Sec. Aux. Cam. Image Sensor

Mono CMOS

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

3D (3-axis) compass

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

Barometer , Light intensity sensor , Proximity sensor , Step counter , IR face sensor

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

8 Persistently protected against immersion beyond 1 meter of depth

Immersion into liquids (depth limit)

600 cm

Immersion into liquids time limit

30 min
