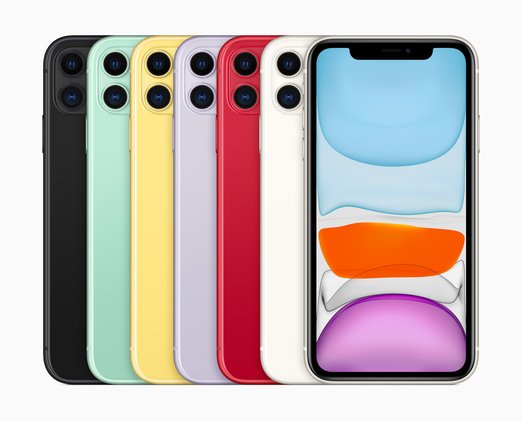

Apple iPhone 11 A2221 Dual SIM TD-LTE JP 128GB (Apple iPhone 12,1)

Osnovno

Datum izlaska

2019-09-21

Brend

Apple

Model

iPhone 11 A2221 Dual SIM TD-LTE JP 128GB

Najavljen

2019 Sep 10

Dizajner hardvera

Apple

Proizvođač

Foxconn

Kodna oznaka

Apple iPhone 12,1

OEM ID

N104AP

Dodatna oprema

Haptic touch feedback , Tactile touch feedback

Kategorija

Smartphone

Kućište

Masa

194 g

Širina

75.7 mm

Visina

150.9 mm

Debljina

8.3 mm

Zapremina kućišta

94.8 ccm

Ekran

Tip

Color IPS TFT LCD display

Dijagonala

6.1 inča

Rezolucija

828x1792

Gustina

323 ppi

Otvor na ekranu

1-notch

Rezolucija

828x1792

Širina ekrana

65.01 mm

Visina ekrana

140.71 mm

Horizontal Full Bezel Width

10.69 mm

Površina ekrana

9147.8 square millimeter

Display Area Utilization

80.1%

Pixel Size

0.07852 mm/pixel

Gustina piksela

323 PPI

Tip ekrana

Color IPS TFT LCD display

Display Subtype

Da

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

LED

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Display Refresh Rate

60 Hz

Zaštita ekrana

Da

Graphical Controller

Apple G12P MP4

A/V Out

Da

A/V Out Max. Resolution

1920x1080 (1080p) FHD

Platforma

Sistem

iOS

Čip

apple-a13-bionic-apl1w85-t8030

Takt procesora

2650 MHz

Procesor

Apple A13 Bionic APL1W85 T8030 (Cebu), 2019, 64 bit, hexa-core, 128 Kbyte I-Cache, 128 Kbyte D-Cache, 4096 Kbyte L2, 16384 Kbyte L3, 7 nm, Apple A13 GPU

Tip RAM memorije

LPDDR4x SDRAM

RAM

4096 MiB RAM

RAM IC

SK Hynix H9HKNNNCRMMVDR

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

122070 MiB non-volatile

Memorija

RAM

4 GB

Interna

128 GB

Baterija

Kapacitet

3110 mAh

Battery

Lithium-ion

Nominal Cell Voltage (1st cell)

3.83 Volts

Nominal Cell Capacity (1st cell)

3110 mAh cell

Nominal Battery Voltage

3.83 Volts

Kapacitet baterije

3110 mAh battery

Nominal Battery Energy

11.91 Wh

Estimated Battery Life

18.0 hours

Estimated Average Current

173 mA

Wireless Charging

Qi wireless charging

Market Countries

Japan

Market Regions

Asia

Mobile Operator

KDDI Corporation NTT DoCoMo Rakuten Mobile SoftBank Corp.

Data Integrity

Final

Added

2020-01-01 16:14

Softver

Platforma

Apple iOS / iPadOS

Operativni sistem

Apple iOS 13

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

3

Microphone Input

Proprietary

Loudspeaker(s):

stereo

Audio Output:

Proprietary

SIM

e-SIM (embedded)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Hearing Aid Compatibility (HAC)

M3 , T4

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Intel PMB9960

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Intel PMB9960

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging

USB Connector

Proprietary

Max. Charging Power

18.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , HFP , HID , MAP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Wi-Fi Calling (UMA) , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B , FeliCa

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Pixel Size

1.40 micrometer

Camera Resolution

4032x3024 pixel

Number of effective pixels

12.2 MP camera

Aperture (W)

f/1.80

Zoom

2.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

26 mm

Recordable Image Formats

JPG , RAW

Video snimanje

3840x2160 pixel

Recordable Video Formats

3G2

Flash

single LED

Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Video Stabilizer (OIS) , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Number of Pixels

12.2 MP aux. cam

Aux. Camera Aperture (W)

f/2.40

Aux. Camera Extra Functions

Video Stabilizer (EIS) , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Prednja kamera

4032x3024 pixel

Secondary Camera Number of pixels

12.2 MP sec. cam

Secondary Aperture (W)

f/2.20

Secondary Min. Equiv. Focal Length

30 mm

Secondary Recordable Image Formats

JPG

Secondary Video Recording

3840x2160 pixel

Secondary Recordable Video Formats

3G2

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Smile detection , Face retouch

Sec. Aux. Cam. Image Sensor

Mono CMOS

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

3D (3-axis) compass

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

Barometer , Light intensity sensor , Proximity sensor , IR face sensor

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

8 Persistently protected against immersion beyond 1 meter of depth

Immersion into liquids (depth limit)

200 cm

Immersion into liquids time limit

30 min
